SB550 Datasheet, Rectifiers, SEMTECH ELECTRONICS

SB550 Features

• Rectifiers
• Plastic package has Underwriters Laboratory Flammability Classification 94V-0
• Metal silicon junction, majority carrier conduction
• Guard ring for overvoltag

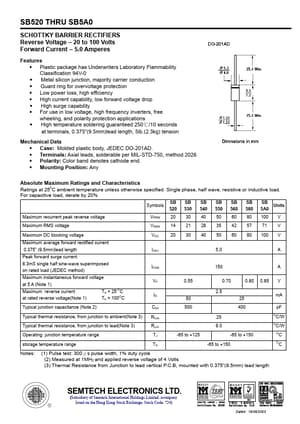

PDF File Details

Part number:

SB550

Manufacturer:

SEMTECH ELECTRONICS

File Size:

327.99kb

Download:

📄 Datasheet

Description:

Schottky barrier rectifiers.

SB550 Application

• Applications
• High temperature soldering guaranteed:250℃/10 seconds at terminals, 0.375”(9.5mm)lead length, 5lb.(2.3kg) tension Mechanical
