2SA933 Datasheet - SEMTECH

2SA933 PNP Silicon Epitaxial Planar Transistor

ST 2SA933 PNP Silicon Epitaxial Planar Transistor for switching and AF amplifier applications. The transistor is subdivided into three groups, O, Y and S, according to its DC current gain. As complementary type the NPN transistor ST 2SC945 is recommended. On special request, these transistors can be manufactured in different pin configurations. TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (T a = 25? ) Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage .

2SA933-SEMTECH.pdf

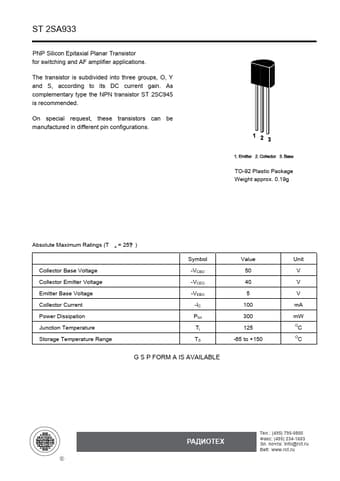

Preview of 2SA933 PDF
2SA933 Datasheet Preview Page 2

Datasheet Details

Part number:

2SA933

Manufacturer:

SEMTECH

File Size:

192.95 KB

Description:

Pnp silicon epitaxial planar transistor.
