2SC2785 NPN Transistor

ST 2SC2785 NPN Silicon Epitaxial Planar Transistor for switching and AF amplifier applications. The transistor is subdivided into four groups, O, Y, G and L, according to its DC current gain. On special request, these transistors can be manufactured in different pin configurations. TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (T a = 25? ) Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Power Dissipation Junction Temperature Storage.

2SC2785 Datasheet (381.09 KB)

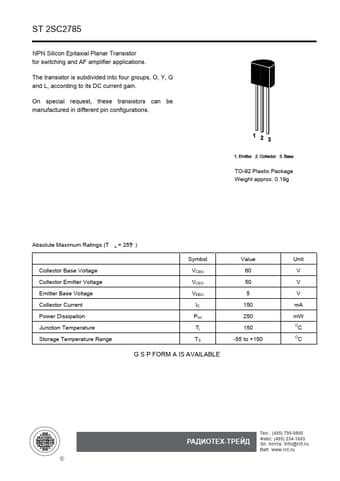

2SC2785 Datasheet Preview — Preview of 2SC2785 PDF

Datasheet Details

Part number:

2SC2785

Manufacturer:

SEMTECH

File Size:

381.09 KB

Description:

Npn transistor.
