2SC2782 Silicon NPN Transistor

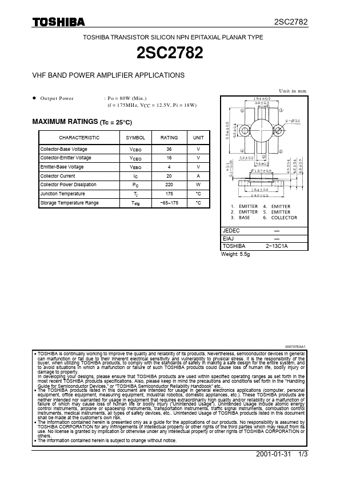

TOSHIBA TRANSISTOR SILICON NPN EPITAXIAL PLANAR TYPE 2SC2782 2SC2782 VHF BAND POWER AMPLIFIER APPLICATIONS Output Power : Po = 80W (Min.) (f = 175MHz, VCC = 12.5V, Pi = 18W) MAXIMUM RATINGS (Tc = 25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Range SYMBOL VCBO VCEO VEBO IC PC Tj Tstg RATING 36 16 4 20 220 175 65~175 UNIT V V V A W °C °C Unit in mm .
