2SC536, NPN Silicon Transistor

ST 2SC536 NPN Silicon Epitaxial Planar Transistor for switching and AF amplifier applications.The transistor is subdivided into four groups, O, Y, G .

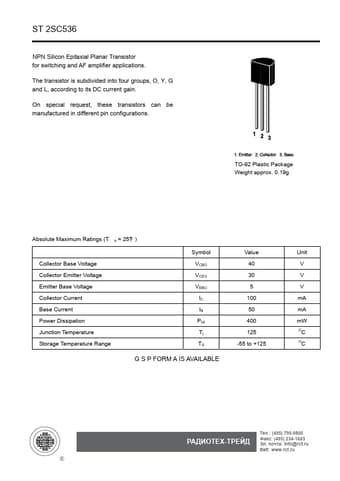

datasheet Preview Page 1 from Datasheet4u.com

2SC536-SEMTECH.pdf

2SC536 Datasheet Preview — Preview of 2SC536 PDF

Datasheet Details

Part number:

2SC536

Manufacturer:

SEMTECH

File Size:

388.53 KB

Description:

NPN Silicon Transistor

Applications

* The transistor is subdivided into four groups, O, Y, G and L, according to its DC current gain. On special request, these transistors can be manufactured in different pin configurations. TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (T a = 25? ) Symbol Value 40 30 5 100 50
