S3DF SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER

S3DF Description

S3AF THRU S3MF SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER Reverse Voltage * 50 to 1000 V Forward Current * 3 A SMAF .

S3DF Features

* Glass Passivated Chip Juntion

S3DF Applications

* Low profile package
* Easy pick and place 4.4 4.9 3.3 3.7 2.40 2.80 1.3 1.6 Mechanical Data
* Case: SMAF
* Terminals: Solderable per MIL-STD-750, method 2026 0.9 1.1 0.12 0.2 All Dimensions in mm Maximum Ratings and Electrical Characteristics Ratings at 25℃ amb

📥 Download Datasheet

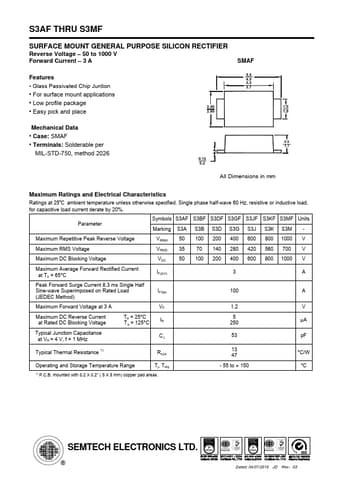

Preview of S3DF PDF
datasheet Preview Page 2

Datasheet Details

Part number
S3DF
Manufacturer
SEMTECH
File Size
339.11 KB
Datasheet
S3DF-SEMTECH.pdf
Description
SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER
