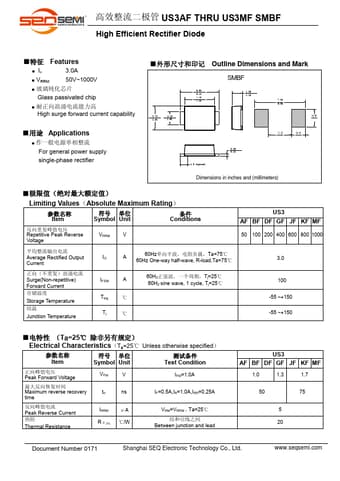

Part number:
US3BF
Manufacturer:
SEQ
File Size:
403.76 KB
Description:
High efficient rectifier diode.
* Io 3.0A
* VRRM 50V~1000V
* Glass passivated chip
* High surge forward current capability
* Applications
* For general power supply single-phase rectifier
* Outline Dimensions and Mark SMBF 5.50 5.10 4.40 4.10 1.35 1.15 7.00 6.50 3.70 2.20 3.50 1.90 (2.9
US3BF
SEQ
403.76 KB
High efficient rectifier diode.
