US3KF, US3AF, High Efficient Rectifier Diode

US3AF THRU US3MF SMBF High Efficient Rectifier Diode * .

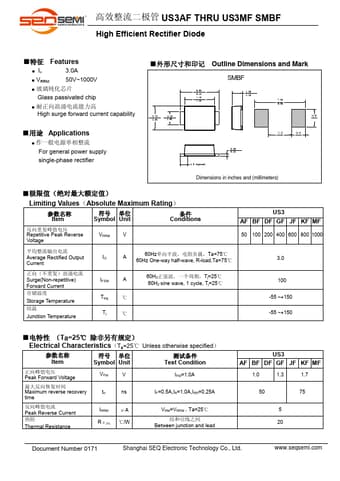

datasheet Preview Page 1 from Datasheet4u.com

US3AF-SEQ.pdf

US3KF Datasheet Preview — This datasheet PDF includes multiple part numbers: US3KF, US3AF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

US3KF, US3AF

Manufacturer:

SEQ

File Size:

403.76 KB

Description:

High Efficient Rectifier Diode

Note:

This datasheet PDF includes multiple part numbers: US3KF, US3AF.
Please refer to the document for exact specifications by model.

Features

* Io 3.0A
* VRRM 50V~1000V
* Glass passivated chip
* High surge forward current capability

Applications

* For general power supply single-phase rectifier
* Outline Dimensions and Mark SMBF 5.50 5.10 4.40 4.10 1.35 1.15 7.00 6.50 3.70 2.20 3.50 1.90 (2.9) (4.2) (2.0) 1.0 typical 0.26 0.18 Dimensions in inches and (millimeters)
* （） Limiting Values（Absolute Maximum Rating） Ite
