SGM12033A Datasheet, Switch, SG Micro

SGM12033A Features

  • Switch
  • Operating Frequency Range: 0.4GHz to 5.8GHz
  • Low Insertion Loss
  • Input 0.1dB Compression Point: 38dBm
  • High Isolation
  • MIPI RFFE V2.1 Inter

PDF File Details

Part number:

SGM12033A

Manufacturer:

SG Micro

File Size:

433.57kb

Download:

📄 Datasheet

Description:

3p3t switch. The SGM12033A is a three-pole/three-throw (3P3T) addressable switch, which supports a wide operating frequency from 0.4GHz to 5.8GHz.

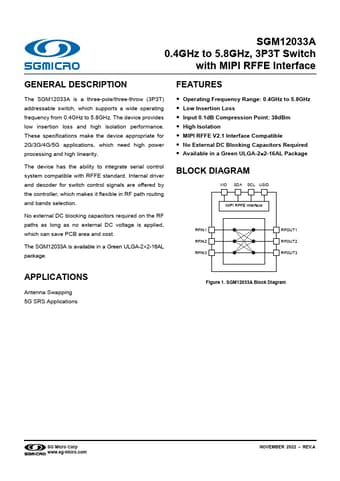

Datasheet Preview: SGM12033A 📥 Download PDF (433.57kb)
Page 2 of SGM12033A Page 3 of SGM12033A

SGM12033A Application

  • Applications which need high power processing and high linearity. The device has the ability to integrate serial control system compatible with RFF
