SGM12UB1D2, Ultra-Low Capacitance 1-Channel ESD Protection

SGM12UB1D2 Ultra-Low Capacitance 1-Channel ESD Protection GENERAL .
The SGM12UB1D2 is a low capacitance ESD protection device designed to protect circuits from electrostatic discharge.

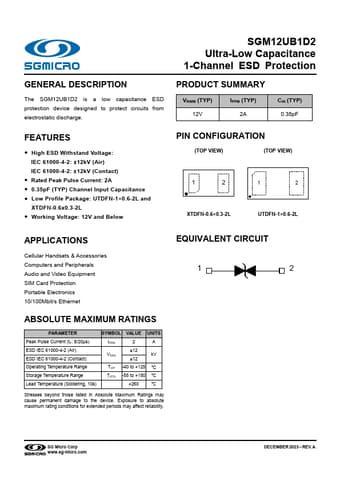

datasheet Preview Page 1 from Datasheet4u.com

SGM12UB1D2-SGMicro.pdf

SGM12UB1D2 Datasheet Preview — Preview of SGM12UB1D2 PDF

Datasheet Details

Part number:

SGM12UB1D2

Manufacturer:

SG Micro

File Size:

505.32 KB

Description:

Ultra-Low Capacitance 1-Channel ESD Protection

Features

* High ESD Withstand Voltage: IEC 61000-4-2: ±12kV (Air) IEC 61000-4-2: ±12kV (Contact)
* Rated Peak Pulse Current: 2A
* 0.35pF (TYP) Channel Input Capacitance
* Low Profile Package: UTDFN-1×0.6-2L and XTDFN-0.6x0.3-2L
* Working Voltage: 12V and Below PIN CONFIGURATION (TOP VIE

Applications

* Cellular Handsets & Accessories Computers and Peripherals Audio and Video Equipment SIM Card Protection Portable Electronics 10/100Mbit/s Ethernet EQUIVALENT CIRCUIT 1 2 ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL VALUE UNITS Peak Pulse Current (tP: 8/20μs) IPPM 2 A ESD IEC 61000-4-2 (Air)
