SGM2205, Low Noise and Low Dropout Voltage Regulator

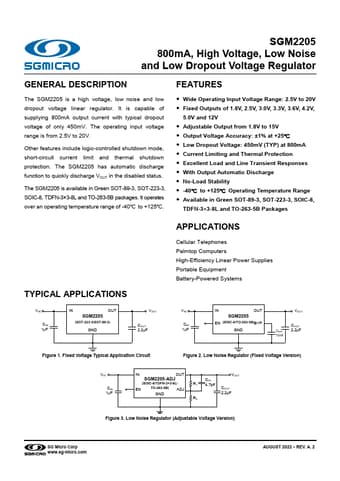

SGM2205 800mA, High Voltage, Low Noise and Low Dropout Voltage Regulator GENERAL .
The SGM2205 is a high voltage, low noise and low dropout voltage linear regulator.

datasheet Preview Page 1 from Datasheet4u.com

SGM2205-SGMicro.pdf

SGM2205 Datasheet Preview — Preview of SGM2205 PDF

Datasheet Details

Part number:

SGM2205

Manufacturer:

SG Micro

File Size:

1.06 MB

Description:

Low Noise and Low Dropout Voltage Regulator

Features

* include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2205 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2205 is available in Green SOT-89-3, SOT-223-3, SOIC-8, TDFN-3×3-8L and TO-263-5B packages. It op

Applications

* APPLICATIONS Cellular Telephones Palmtop Computers High-Efficiency Linear Power Supplies Portable Equipment Battery-Powered Systems VIN CIN 1μF IN OUT SGM2205 (SOT-223-3/SOT-89-3) GND VOUT COUT 2.2μF VIN CIN 1μF IN OUT SGM2205 EN (SOIC-8/TO-263-5B)BYP GND VOUT CBYP 10nF COUT 2.2μF
