SGM2258 - Low-Power Full-Speed USB(12Mbps) Switch

SGM2258 Description

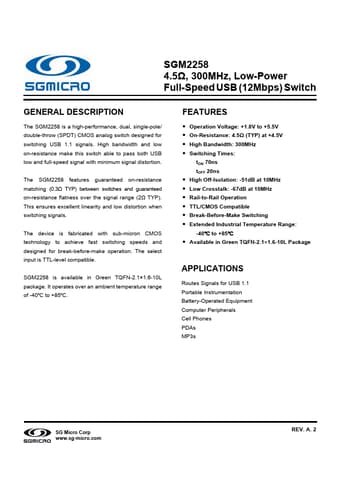

SGM2258 4.5Ω, 300MHz, Low-Power Full-Speed USB (12Mbps) Switch GENERAL .
The SGM2258 is a high-performance, dual, single-pole/ double-throw (SPDT) CMOS analog switch designed for switching USB 1.

SGM2258 Features

* guaranteed on-resistance matching (0.3Ω TYP) between switches and guaranteed on-resistance flatness over the signal range (2Ω TYP). This ensures excellent linearity and low distortion when switching signals. The device is fabricated with sub-micron CMOS technology to achieve fast switching speeds an

SGM2258 Applications

* Routes Signals for USB 1.1 Portable Instrumentation Battery-Operated Equipment Computer Peripherals Cell Phones PDAs MP3s SG Micro Corp www. sg-micro. com REV. A. 2 SGM2258 4.5Ω, 300MHz, Low-Power Full-Speed USB (12Mbps) Switch PACKAGE/ORDERING INFORMATION MODEL SGM2258 PINPACKAGE TQFN-2.1×1.6-

📥 Download Datasheet

Preview of SGM2258 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SGM2258
Manufacturer
Shengbang Microelectronics
File Size
331.17 KB
Datasheet
SGM2258-ShengbangMicroelectronics.pdf
Description
Low-Power Full-Speed USB(12Mbps) Switch
