SGM2200

High Voltage Regulators

Shengbang Microelectronics

SGM2200 Features

* include current limit and thermal shutdown protection. The SGM2200 is available in Green SOT-89-3, SOT-23, TSOT-23-5 and SC70-5 packages. It operates over an operating temperature range of -40℃ to +85℃. FEATURES

* High Input Voltage: Up to 26.4V

* Fixed Outputs of 1.5V, 1.8V, 2.5V, 2.8V, 3.

SGM2200 General Description

The SGM2200 is a high voltage and low dropout voltage linear regulator. It is capable of supplying 50mA output current. The operating input voltage is up to 26.4V. The output voltage range is from 1.5V to 5.0V in fixed output version. For adjustable output version, the output voltage can be adjusted.

SGM2200 Datasheet (905.68 KB)

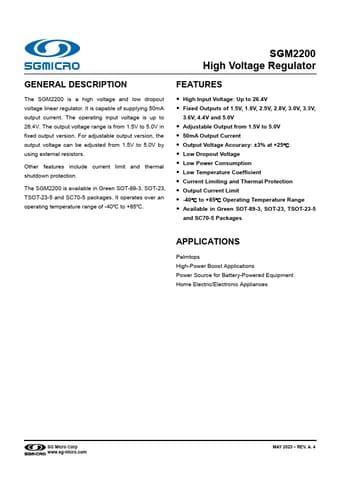

SGM2200 Datasheet Preview — Preview of SGM2200 PDF

Datasheet Details

Part number:

SGM2200

Manufacturer:

Shengbang Microelectronics

File Size:

905.68 KB

Description:

High voltage regulators.
