SGM2208 - adjustable output and low dropout voltage linear regulator

SGM2208 Description

SGM2208 3A, Low Noise, Adjustable Output with Single Resistor and Low Dropout Regulator GENERAL .
The SGM2208 is a low noise, adjustable output and low dropout voltage linear regulator.

SGM2208 Features

* include output current limit and thermal shutdown protection. The output voltage of the SGM2208 can be adjusted flexibly with a single resistor and the output can be configured to 0V. The SGM2208 is available in Green TSSOP-16 (Exposed Pad), TDFN-3×3-12L and TO-263-5B packages. It operates over an o

SGM2208 Applications

* Parallel Shunt Application Low Output Voltage Power Supplies DAC-Controlled Adjustable Power Supplies Programmable High Current Power Supplies TYPICAL APPLICATION VIN CIN VCTRL CCTRL IN OUT SGM2208 CTRL SET COUT VOUT ROUT RSET CSET Figure 1. Typical Application Circuit SG Micro Corp www.

📥 Download Datasheet

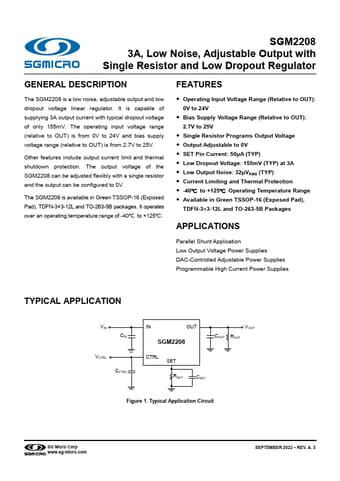

Preview of SGM2208 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SGM2208
Manufacturer
SG Micro
File Size
1.02 MB
Datasheet
SGM2208-SGMicro.pdf
Description
adjustable output and low dropout voltage linear regulator
