SGM2207 - Low Noise and Low Dropout Voltage Regulator

SGM2207 Description

SGM2207 800mA, High Voltage, Low Noise and Low Dropout Voltage Regulator GENERAL .
The SGM2207 is a high voltage, low noise and low dropout voltage linear regulator.

SGM2207 Features

* include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2207 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2207 is available in a Green TDFN-2×3-8BL package. It operates over an operating temperature rang

SGM2207 Applications

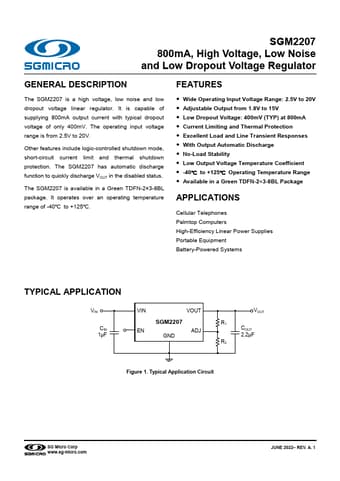

* Cellular Telephones Palmtop Computers High-Efficiency Linear Power Supplies Portable Equipment Battery-Powered Systems TYPICAL APPLICATION VIN CIN 1μF VIN VOUT SGM2207 EN ADJ GND VOUT R1 COUT 2.2μF R2 Figure 1. Typical Application Circuit SG Micro Corp www. sg-micro. com JUNE 2022
