SGM2572 Datasheet - SG Micro

SGM2572 - Load Switch

The SGM2572 is a single load switch with reverse current protection and controlled turn-on.

The device can operate from 1V to 5.5V single supply and has the ability to drive up to 2A continuous current.

The device contains a 34mΩ low RON N-MOSFET controlled by the ON pin.

The small package and low R

SGM2572 Features

* Input Voltage Range: 1V to 5.5V

* Maximum Continuous Current: 2A

* Low On-Resistance

* RON = 34mΩ at VIN = 5V

* RON = 34mΩ at VIN = 3.3V

* Low Shutdown Current: 90nA (TYP)

* Reverse Current Protection When Disabled

* Low Threshold 1.8V GPIO Control Input

* Bidir

SGM2572-SGMicro.pdf

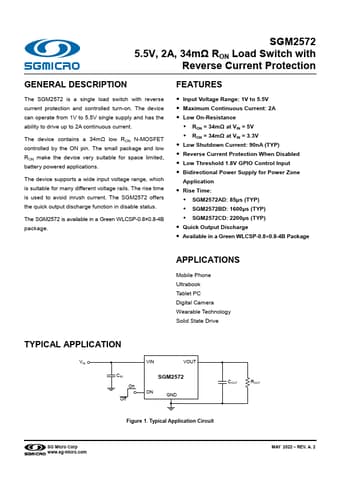

Preview of SGM2572 PDF
