SGM2576

Power Distribution Switches

SGM2576 Features

* are provided in the device including soft-start, programmable current limit and thermal shutdown. This device provides a programmable current limit threshold between 100mA and 2.5A through the RILIM. Thermal shutdown shuts off the output MOSFET if the die temperature exceeds +150℃, and the output MO

SGM2576 General Description

The SGM2576 and SGM2576B are single channel power distribution switches. The switches operate from a wide range of 2.5V to 5.5V supply voltage, and are controlled by the EN pin. A 100mΩ low RON N-MOSFET is integrated. The small size and quiescent current make the device very suitable for space limit.

SGM2576 Datasheet (634.78 KB)

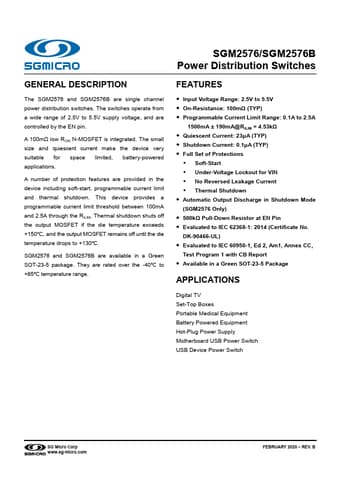

Preview of SGM2576 PDF

Datasheet Details

Part number:

SGM2576

Manufacturer:

SG Micro

File Size:

634.78 KB

Description:

Power distribution switches.
