SGM2578A

Load Switch

SG Micro

SGM2578A Features

* Input Voltage Range: 1V to 5.5V

* Low On-Resistance

* RON = 29mΩ at VIN = 4.35V

* RON = 30mΩ at VIN = 3.3V

* RON = 36mΩ at VIN = 1.0V

* Low Shutdown Current: 90nA (TYP)

* Maximum Continuous Current: 2A

* Reverse Current Protection When Disabled

* Low Threshold 1

SGM2578A General Description

The SGM2578A is a single load switch with reverse current protection function. The device can operate from 1V to 5.5V single supply and has the ability to drive up to 2A continuous current. The device contains a 30mΩ low RON N-MOSFET controlled by the ON pin. If the power supply is turned on for the.

SGM2578A Datasheet (1.04 MB)

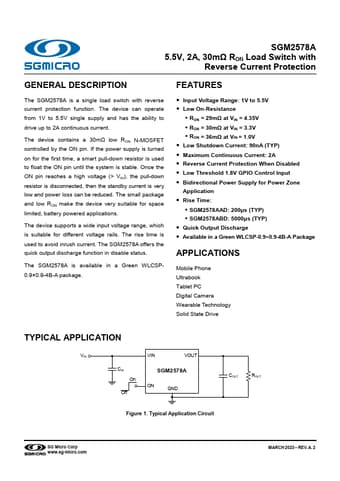

SGM2578A Datasheet Preview — Preview of SGM2578A PDF

Datasheet Details

Part number:

SGM2578A

Manufacturer:

SG Micro

File Size:

1.04 MB

Description:

Load switch.
