SGM2575 - Load Switch

SGM2575 Description

SGM2575 5.5V, 2A, 34mΩ RON Load Switch with Reverse Current Protection GENERAL .
The SGM2575 is a single load switch with reverse current protection and controlled turn-on.

SGM2575 Features

* Input Voltage Range: 1V to 5.5V
* Maximum Continuous Current: 2A
* Low On-Resistance
* RON = 34mΩ at VIN = 5V
* RON = 34mΩ at VIN = 3.3V
* Low Shutdown Current: 90nA (TYP)
* Reverse Current Protection When Disabled
* Low Threshold 1.8V GPIO Control Input
* Bidir

SGM2575 Applications

* The device supports a wide input voltage range, which is suitable for many different voltage rails. The rise time is used to avoid inrush current. The SGM2575AD/ SGM2575BD offer the quick output discharge function in disable status. The SGM2575 is available in a Green WLCSP-0.8×0.8-4B package. TYPI

📥 Download Datasheet

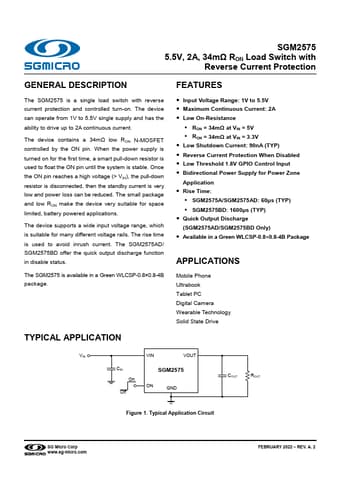

Preview of SGM2575 PDF
