SGM41513 3A Single-Cell Battery Charger

SGM41513 Description

SGM41513/SGM41513A/SGM41513D High Input Voltage, 3A Single-Cell Battery Charger with NVDC Power Path Management .
The SGM41513/SGM41513A/SGM41513D are battery chargers and system power path management devices with integrated converter and power switches for using.

SGM41513 Features

* 3.9V to 13.5V Operating Input Voltage Range
* Up to 22V Sustainable Voltage
* High Efficiency, 1.5MHz, Synchronous Buck Charger
* 93.8% Charge Efficiency at 1.02A from 5V Input
* 89.8% Charge Efficiency at 2A from 9V Input
* Optimized for 9V/12V Input
* Selectable PFM M

SGM41513 Applications

* Smart Phones, EPOS Portable Internet Devices and Accessory SIMPLIFIED SCHEMATIC USB Host Input 3.9V to 13.5V OTG 5V at 1.2A I2C Bus Host Control VBUS SW BTST SYS BAT nQON SGM41513 SGM41513A SGM41513D REGN TS SYS 3.5V to 4.6V ICHG = 3A Optional SG Micro Corp www. sg-micro. com AUGUST 2024

📥 Download Datasheet

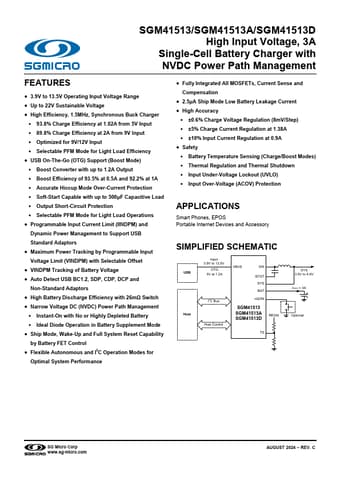

Preview of SGM41513 PDF
