SGM44600 - DPDT Analog Switch

Datasheet Summary

Description

The SGM44600 is a dual, high-speed, low-voltage, double-pole/double-throw (DPDT) CMOS analog switch that is designed to operate from a single 1.8V to 5.5V power supply.

Features

  • high-bandwidth (300MHz) and low on-resistance (4Ω TYP), targeted.

📥 Download Datasheet

Datasheet preview – SGM44600

Datasheet Details

Part number SGM44600
Manufacturer Shengbang Microelectronics
File Size 1.39 MB
Description DPDT Analog Switch
Datasheet download datasheet SGM44600 Datasheet
Additional preview pages of the SGM44600 datasheet.

📁 Similar Datasheet

  • SGM447 - 1.5V Dual-Gain Analog Temperature Sensor (SG Micro)
  • SGM4025 - CMOS Voltage Reference (SG Micro)
  • SGM4027 - CMOS Voltage Reference (SG Micro)
  • SGM4027A - CMOS Voltage Reference (SG Micro)
  • SGM4029 - Precision Voltage Reference (SG Micro)
  • SGM4040 - Micro-Power Precision Shunt Voltage Reference (SG Micro)
  • SGM4041 - Micro-Power Precision Shunt Voltage Reference (SG Micro)
  • SGM4051 - Micro-Power Precision Shunt Voltage Reference (SG Micro)
  • SGM4054 - Standalone Linear Li-Ion Battery SGM4054 Charger (SG Micro)
  • SGM4056 - High Input Voltage Charger (SG Micro)
Other Datasheets by Shengbang Microelectronics

Full PDF Text Transcription

Click to expand full text

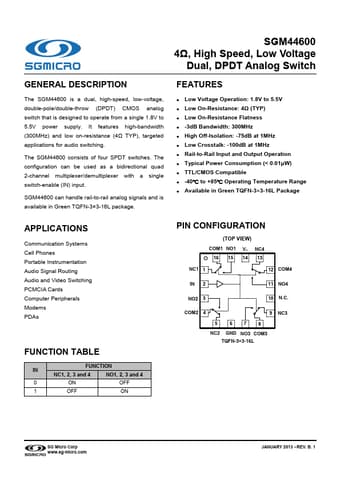

SGM44600 4Ω, High Speed, Low Voltage Dual, DPDT Analog Switch GENERAL DESCRIPTION The SGM44600 is a dual, high-speed, low-voltage, double-pole/double-throw (DPDT) CMOS analog switch that is designed to operate from a single 1.8V to 5.5V power supply. It features high-bandwidth (300MHz) and low on-resistance (4Ω TYP), targeted applications for audio switching. The SGM44600 consists of four SPDT switches. The configuration can be used as a bidirectional quad 2-channel multiplexer/demultiplexer with a single switch-enable (IN) input. SGM44600 can handle rail-to-rail analog signals and is available in Green TQFN-3×3-16L package. FEATURES  Low Voltage Operation: 1.8V to 5.
