SGM4025 - CMOS Voltage Reference

SGM4025 Description

SGM4025 30ppm/℃, 230μA, CMOS Voltage Reference GENERAL .
The SGM4025 is a precision, low power, low noise and low dropout voltage reference, which is designed to offer low temperature drift and high initial.

SGM4025 Applications

* such as transmitters of temperature and pressure. To keep the stability and decrease the output noise of the output voltage, a capacitor with the capacitance of 1μF to 10μF should be added at the output pin of SGM4025. For the typical operation, the power supply voltage should be 0.2V beyond the VR

📥 Download Datasheet

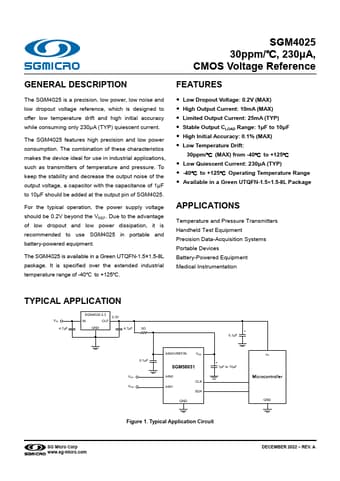

Preview of SGM4025 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SGM4025
Manufacturer
SG Micro
File Size
1.85 MB
Datasheet
SGM4025-SGMicro.pdf
Description
CMOS Voltage Reference
