SGM44603 - SPDT Analog Switch

Datasheet Summary

Description

The SGM44603 is a high-speed, low-voltage, quad single-pole/double-throw (SPDT) CMOS analog switch multiplexer that is designed to operate from a single +1.8V to +5.5V power supply.

Features

  • guaranteed on-resistance (4.5Ω TYP), on-resistance matching (3.6Ω MAX) between switches and guaranteed on-resistance flatness over the signal range (3Ω TYP). This ensures excellent linearity and low distortion when switching audio signals. Fast switching speed, coupled with high signal bandwidth (300MHz), also makes the parts suitable for video signal switching. CMOS construction ensures ultra low power dissipation, making the parts ideally suited for portable and battery powered instruments. SG.

📥 Download Datasheet

Datasheet preview – SGM44603

Datasheet Details

Part number SGM44603
Manufacturer Shengbang Microelectronics
File Size 347.81 KB
Description SPDT Analog Switch
Datasheet download datasheet SGM44603 Datasheet
Additional preview pages of the SGM44603 datasheet.

📁 Similar Datasheet

  • SGM447 - 1.5V Dual-Gain Analog Temperature Sensor (SG Micro)
  • SGM4025 - CMOS Voltage Reference (SG Micro)
  • SGM4027 - CMOS Voltage Reference (SG Micro)
  • SGM4027A - CMOS Voltage Reference (SG Micro)
  • SGM4029 - Precision Voltage Reference (SG Micro)
  • SGM4040 - Micro-Power Precision Shunt Voltage Reference (SG Micro)
  • SGM4041 - Micro-Power Precision Shunt Voltage Reference (SG Micro)
  • SGM4051 - Micro-Power Precision Shunt Voltage Reference (SG Micro)
  • SGM4054 - Standalone Linear Li-Ion Battery SGM4054 Charger (SG Micro)
  • SGM4056 - High Input Voltage Charger (SG Micro)
Other Datasheets by Shengbang Microelectronics

Full PDF Text Transcription

Click to expand full text

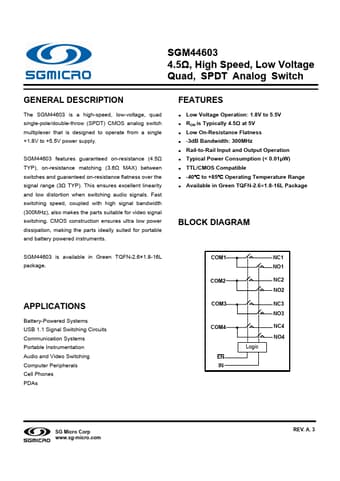

SGM44603 4.5Ω, High Speed, Low Voltage Quad, SPDT Analog Switch GENERAL DESCRIPTION The SGM44603 is a high-speed, low-voltage, quad single-pole/double-throw (SPDT) CMOS analog switch multiplexer that is designed to operate from a single +1.8V to +5.5V power supply. SGM44603 features guaranteed on-resistance (4.5Ω TYP), on-resistance matching (3.6Ω MAX) between switches and guaranteed on-resistance flatness over the signal range (3Ω TYP). This ensures excellent linearity and low distortion when switching audio signals. Fast switching speed, coupled with high signal bandwidth (300MHz), also makes the parts suitable for video signal switching. CMOS construction ensures ultra low power dissipation, making the parts ideally suited for portable and battery powered instruments.
