SGM44601 - DPDT Analog Switch

Datasheet Summary

Description

The SGM44601 is a high-speed, low-voltage, advanced dual-independent double-pole/double-throw (DPDT) CMOS analog switch that is designed to operate from a single +1.8V to +5.5V power supply.

Features

  • high-bandwidth (300MHz) and low on-resistance (4Ω TYP), targeted.

📥 Download Datasheet

Datasheet preview – SGM44601

Datasheet Details

Part number SGM44601
Manufacturer Shengbang Microelectronics
File Size 1.86 MB
Description DPDT Analog Switch
Datasheet download datasheet SGM44601 Datasheet
Additional preview pages of the SGM44601 datasheet.

📁 Similar Datasheet

  • SGM447 - 1.5V Dual-Gain Analog Temperature Sensor (SG Micro)
  • SGM4025 - CMOS Voltage Reference (SG Micro)
  • SGM4027 - CMOS Voltage Reference (SG Micro)
  • SGM4027A - CMOS Voltage Reference (SG Micro)
  • SGM4029 - Precision Voltage Reference (SG Micro)
  • SGM4040 - Micro-Power Precision Shunt Voltage Reference (SG Micro)
  • SGM4041 - Micro-Power Precision Shunt Voltage Reference (SG Micro)
  • SGM4051 - Micro-Power Precision Shunt Voltage Reference (SG Micro)
  • SGM4054 - Standalone Linear Li-Ion Battery SGM4054 Charger (SG Micro)
  • SGM4056 - High Input Voltage Charger (SG Micro)
Other Datasheets by Shengbang Microelectronics

Full PDF Text Transcription

Click to expand full text

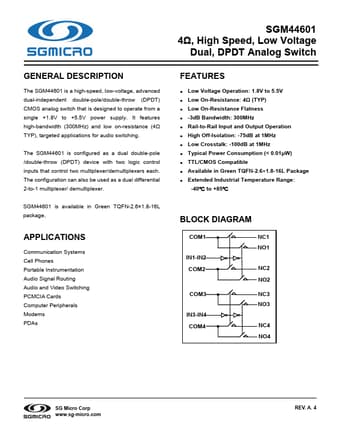

SGM44601 4Ω, High Speed, Low Voltage Dual, DPDT Analog Switch GENERAL DESCRIPTION The SGM44601 is a high-speed, low-voltage, advanced dual-independent double-pole/double-throw (DPDT) CMOS analog switch that is designed to operate from a single +1.8V to +5.5V power supply. It features high-bandwidth (300MHz) and low on-resistance (4Ω TYP), targeted applications for audio switching. The SGM44601 is configured as a dual double-pole /double-throw (DPDT) device with two logic control inputs that control two multiplexer/demultiplexers each. The configuration can also be used as a dual differential 2-to-1 multiplexer/ demultiplexer. SGM44601 is available in Green TQFN-2.6×1.8-16L package.
