- Description
- Precision Voltage Reference
SGM4029 Description
SGM4029 Low Noise, Low Drift, Precision Voltage Reference GENERAL .
The SGM4029 is a precision voltage reference with extreme low noise and drift.
SGM4029 Features
* Low Temperature Drift:
* -40℃ to +125℃: 5ppm/℃ (TYP), 10ppm/℃ (MAX)
* 0℃ to +85℃: 3ppm/℃ (TYP)
* High Initial Accuracy: ±0.05% (TYP), ±0.1% (MAX)
* Low Noise: 3.4μVP-P/V
* High Output Current: ±10mA
* -40℃ to +125℃ Operating Temperature Range
* Available in a Green
SGM4029 Applications
* Data-Acquisition Systems Instrumentation and Test Equipment Industrial Process Controls Medical Equipment Temperature and Pressure Transmitters Lab Instrumentation Field Instrumentation

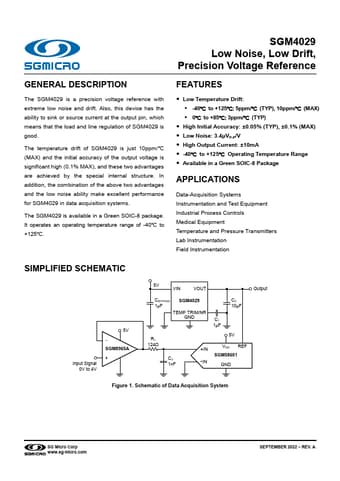

SIMPLIFIED SCHEMATIC
Input Signal 0V to 4V
5V
_
SGM8965A +
5V
VIN
VOUT
Output
CBYPASS 1μF
SGM4029
TEMP T
