SGM41515D, SGM41515 3A Single-Cell Battery Charger

SGM41515D Description

SGM41515/SGM41515A/SGM41515D High Input Voltage, 3A Single-Cell Battery Charger with NVDC Power Path Management .
The SGM41515/SGM41515A/SGM41515D are battery chargers and system power path management devices with integrated converter and power switches for using.

SGM41515D Features

* 3.9V to 13.5V Operating Input Voltage Range
* Up to 22V Sustainable Voltage
* High Efficiency, 1.5MHz, Synchronous Buck Charger
* 93.8% Charge Efficiency at 1.02A from 5V Input
* 89.8% Charge Efficiency at 2A from 9V Input
* Optimized for 9V/12V Input
* Selectable PFM M

SGM41515D Applications

* Smart Phones, EPOS Portable Internet Devices and Accessory SIMPLIFIED SCHEMATIC USB Host Input 3.9V to 13.5V OTG 5V at 1.2A I2C Bus Host Control VBUS SW BTST SYS BAT nQON SGM41515 SGM41515A SGM41515D TS REGN SYS 3.5V to 4.6V ICHG = 3A Optional SG Micro Corp www. sg-micro. com DECEMBER 2023

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SGM41515D, SGM41515. Please refer to the document for exact specifications by model.

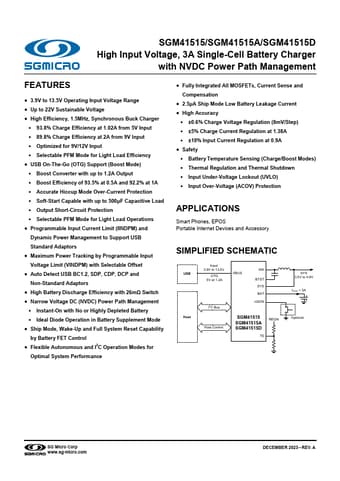

datasheet Preview Page 2 datasheet Preview Page 3
