SGM41516D, SGM41516 - 3.78A Single-Cell Battery Charger

SG Micro

The SGM41516D by SG Micro is a 3.78A Single-Cell Battery Charger. Below is the official datasheet preview.

📥 Download Datasheet

SGM41516D 3.78A Single-Cell Battery Charger by SG Micro - Datasheet Preview — Official preview page of the **SGM41516D** 3.78A Single-Cell Battery Charger datasheet (SG Micro).

Datasheet Details

Part number	SGM41516D, SGM41516
Manufacturer	SG Micro
File Size	1.66 MB
Description	3.78A Single-Cell Battery Charger
Datasheet	SGM41516-SGMicro.pdf
Note	This datasheet PDF includes multiple part numbers: SGM41516D, SGM41516. Please refer to the document for exact specifications by model.

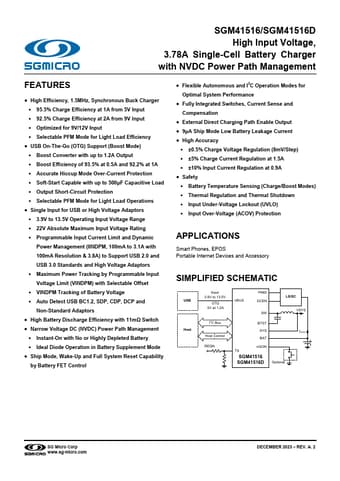

Additional preview pages of the SGM41516D datasheet.

SGM41516D Product details

Description

The SGM41516/SGM41516D are battery chargers and system power path management devices with integrated converter and power switches for using with single-cell Li-Ion or Li-polymer batteries.

Features

High Efficiency, 1.5MHz, Synchronous Buck Charger.
95.5% Charge Efficiency at 1A from 5V Input.
92.5% Charge Efficiency at 2A from 9V Input.
Optimized for 9V/12V Input.
Selectable PFM Mode for Light Load Efficiency.
USB On-The-Go (OTG) Support (Boost Mode).
Boost Converter with up to 1.2A Output.
Boost Efficiency of 93.5% at 0.5A and 92.2% at 1A.
Accurate Hiccup Mode Over-Current Protection.
Soft-Start Capable with up to 500μF Capacitive Load.
