SGM41562A - 500mA Single-Cell Li-Ion Battery Charger

Name: SGM41562A
SKU: SGM41562A-1549355

SG Micro

📥 Download Datasheet

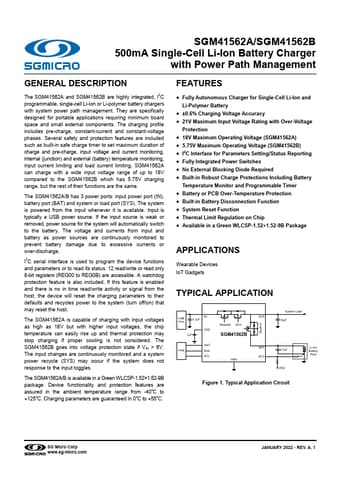

SGM41562A Datasheet Preview — Preview of SGM41562A PDF

Datasheet Details

Part number	SGM41562A
Manufacturer	SG Micro
File Size	1.03 MB
Description	500mA Single-Cell Li-Ion Battery Charger
Datasheet	SGM41562A-SGMicro.pdf

SGM41562A Product details

Description

The SGM41562A and SGM41562B are highly integrated, I2C programmable, single-cell Li-Ion or Li-polymer battery chargers with system power path management.

Features

are included such as built-in safe charge timer to set maximum duration of charge and pre-charge, input voltage and current monitoring, internal (junction) and external (battery) temperature monitoring, input current limiting and load current limiting. SGM41562A can charge with a wide input voltage range of up to 18V compared to the SGM41562B which has 5.75V charging range, but the rest of their functions are the same. The SGM41562A/B has 3 power ports: input power port (IN), battery port (BAT).
