SGM41570 SMBus NVDC Buck-Boost Charge Controller

SGM41570 Description

SGM41570 SMBus NVDC Buck-Boost Charge Controller for 1- to 4-Cell Battery .
The SGM41570 is a synchronous Buck-Boost battery charge controller with NVDC power path management.

SGM41570 Features

* 1- to 4-Cell Charging from a Variety of Input Types
* 3.58V to 24V Input Operating Voltage Range
* USB 2.0/3.0/3.1 (Type-C)/USB PD Input Current Support
* Seamless Buck ↔ Buck-Boost ↔ Boost Transitions
* Input Overload Protection (IDPM and VDPM Regulation)
* CPU Throttling,

SGM41570 Applications

* Bluetooth Speakers, Drones, IP Cameras, Detachable Power Supply Portable Internet Devices and Accessory Industrial and Medical Equipment TYPICAL APPLICATION Q1 Q2 Q3 Q4 Adapter 3.58V to 24V Host SMBus HIDRV1 LODRV1 SW1 SW2 LODRV2 HIDRV2 VBUS ACN ACP VSYS nBATDRV SGM41570 SRP Host Contro

📥 Download Datasheet

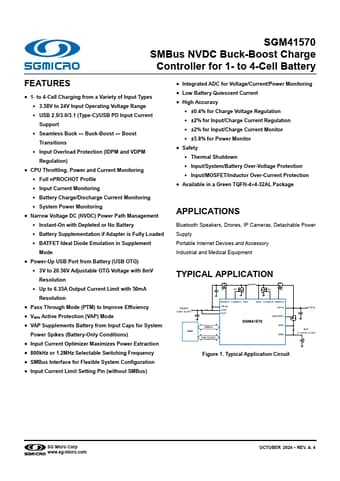

Preview of SGM41570 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SGM41570
Manufacturer
SG Micro
File Size
1.39 MB
Datasheet
SGM41570-SGMicro.pdf
Description
SMBus NVDC Buck-Boost Charge Controller
