SGM42403Q

Quad Low-side Driver

SGM42403Q Features

* AEC-Q100 Qualified for Automotive Applications Device Temperature Grade 1 TA = -40℃ to +125℃

* Supply Voltage Range: 6.5V to 50V

* Quad Low-side Driver

* Four N-Channel MOSFETs

* Can be Paralleled for Higher Current Capability

* Integrated Diodes for Inductive Energy Discha

SGM42403Q General Description

The SGM42403Q consists of four identical low-side drivers with over-current protection. It has integrated diodes to discharge the inductive load energy such as unipolar stepper motors, DC motors, relays, solenoids or other loads when output is turned off. The SGM42403Q can provide continuous output .

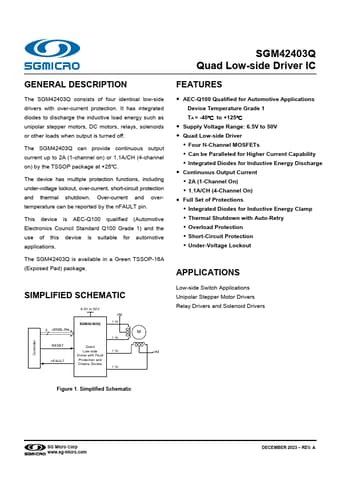

SGM42403Q Datasheet (631.88 KB)

Preview of SGM42403Q PDF

Datasheet Details

Part number:

SGM42403Q

Manufacturer:

SG Micro

File Size:

631.88 KB

Description:

Quad low-side driver.
