SGM42512

5.5V H-Bridge Driver

SGM42512 Features

* Compact Size and Smart Protection

* Support Fast Decay and Slow Decay Modes

* Sleep Mode Supply Current: 140nA (TYP)

* Internal OC/UV/OT Protections

* Over-Current Threshold Options: 0.45A/0.9A/1.5A

* Under-Voltage Threshold Options: 1.75V/2.8V/3.6V

* Up to 5.5V Supply

SGM42512 General Description

The SGM42512 is an H-bridge driver designed for actuating motors and coils bi-directionally turning. It translates logic level input to power driving outputs to motors or coils, for different spinning or moving directions by PH-EN/FAULT interface. Internal over-current (OC) and under-voltage (UV) pr.

SGM42512 Datasheet (708.21 KB)

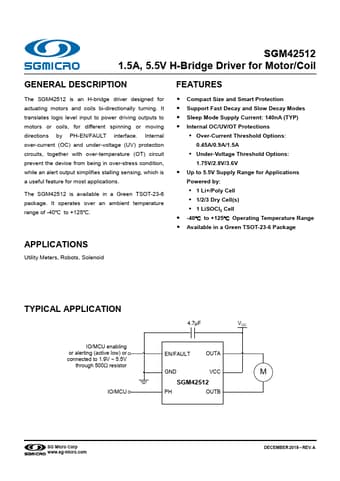

Preview of SGM42512 PDF

Datasheet Details

Part number:

SGM42512

Manufacturer:

SG Micro

File Size:

708.21 KB

Description:

5.5v h-bridge driver.
