SGM4510 - Quad SPST CMOS Analog Switch

Datasheet Summary

Description

The SGM4510 is a low cost, CMOS monolithic, quad single-pole/single-throw (SPST) analog switch.

It operates from +4.5V to +40V single power supply or ±4.5V to ±20V dual power supplies.

The SGM4510 is designed with improved charge injection compensation to minimize switching transients.

Features

Single Supply Voltage Range: +4.5V to +40V.
Dual-Supply Voltage Range: ±4.5V to ±20V.
1.8V Control Logic.
Low On-Resistance: 15.5Ω (TYP).
Fast Switching Times: tON = 120ns tOFF = 40ns.
Low Charge Injection: 55pC.
Simple Logic Interface.
Minimum Transients.
-40℃ to +85℃ Operating Temperature Range.
Available in a Green SOIC-16 Package.

Datasheet Details

Part number	SGM4510
Manufacturer	SG Micro
File Size	512.71 KB
Description	Quad SPST CMOS Analog Switch
Datasheet	SGM4510 Datasheet

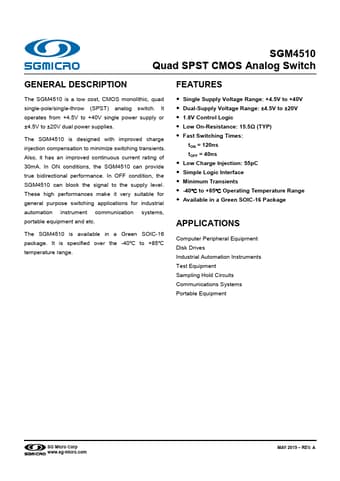

Additional preview pages of the SGM4510 datasheet.

📁 Similar Datasheet

SGM45C1E682-4A - compact physical dimensions (Sumitiomo)

SGM45C1H102-4A - compact physical dimensions (Sumitiomo)

SGM45C1H222-4A - compact physical dimensions (Sumitiomo)

SGM45C1H471-4A - compact physical dimensions (Sumitiomo)

SGM4157 - DPDT Analog Switch (Shengbang Microelectronics)

SGM44599 - DPDT Analog Switch (Shengbang Microelectronics)

SGM44600 - DPDT Analog Switch (Shengbang Microelectronics)

SGM44601 - DPDT Analog Switch (Shengbang Microelectronics)

SGM44602 - DPDT Analog Switch (Shengbang Microelectronics)

SGM44603 - SPDT Analog Switch (Shengbang Microelectronics)

Full PDF Text Transcription

Click to expand full text

SGM4510 Quad SPST CMOS Analog Switch GENERAL DESCRIPTION The SGM4510 is a low cost, CMOS monolithic, quad single-pole/single-throw (SPST) analog switch. It operates from +4.5V to +40V single power supply or ±4.5V to ±20V dual power supplies. The SGM4510 is designed with improved charge injection compensation to minimize switching transients. Also, it has an improved continuous current rating of 30mA. In ON conditions, the SGM4510 can provide true bidirectional performance. In OFF condition, the SGM4510 can block the signal to the supply level. These high performances make it very suitable for general purpose switching applications for industrial automation instrument communication systems, portable equipment and etc. The SGM4510 is available in a Green SOIC-16 package.
