SGM4517 - SPDT Analog Switch

Datasheet Summary

Features

  • The SGM4517 is a dual SPDT (single-pole/double-throw) analog switch. It can operate from a 2.7V to 24V single power supply or ±2.7V to ±12V dual supplies. The SGM4517 features low on-resistance, high voltage and fast switching times. The high performances make it very suitable for multiple.

📥 Download Datasheet

Datasheet preview – SGM4517

Datasheet Details

Part number SGM4517
Manufacturer SG Micro
File Size 572.29 KB
Description SPDT Analog Switch
Datasheet download datasheet SGM4517 Datasheet
Additional preview pages of the SGM4517 datasheet.

📁 Similar Datasheet

  • SGM45C1E682-4A - compact physical dimensions (Sumitiomo)
  • SGM45C1H102-4A - compact physical dimensions (Sumitiomo)
  • SGM45C1H222-4A - compact physical dimensions (Sumitiomo)
  • SGM45C1H471-4A - compact physical dimensions (Sumitiomo)
  • SGM4157 - DPDT Analog Switch (Shengbang Microelectronics)
  • SGM44599 - DPDT Analog Switch (Shengbang Microelectronics)
  • SGM44600 - DPDT Analog Switch (Shengbang Microelectronics)
  • SGM44601 - DPDT Analog Switch (Shengbang Microelectronics)
  • SGM44602 - DPDT Analog Switch (Shengbang Microelectronics)
  • SGM44603 - SPDT Analog Switch (Shengbang Microelectronics)
Other Datasheets by SG Micro
  • SGM451 - Local and Remote Temperature Sensor
  • SGM4510 - Quad SPST CMOS Analog Switch
  • SGM4518 - CMOS Analog Multiplexer
  • SGM4518SH - CMOS Analog Multiplexer
  • SGM4519 - CMOS Analog Multiplexer
  • SGM450 - High Accuracy Analog Output Temperature Sensor
  • SGM452 - Low Power Digital Temperature Sensor
  • SGM4520 - CMOS Analog Switch

Full PDF Text Transcription

Click to expand full text

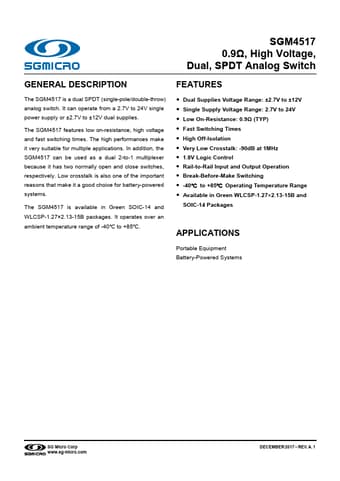

SGM4517 0.9Ω, High Voltage, Dual, SPDT Analog Switch GENERAL DESCRIPTION FEATURES The SGM4517 is a dual SPDT (single-pole/double-throw) analog switch. It can operate from a 2.7V to 24V single power supply or ±2.7V to ±12V dual supplies. The SGM4517 features low on-resistance, high voltage and fast switching times. The high performances make it very suitable for multiple applications. In addition, the SGM4517 can be used as a dual 2-to-1 multiplexer because it has two normally open and close switches, respectively. Low crosstalk is also one of the important reasons that make it a good choice for battery-powered systems. The SGM4517 is available in Green SOIC-14 and WLCSP-1.27×2.13-15B packages. It operates over an ambient temperature range of -40℃ to +85℃.
