KSH13005W NPN SILICON TRANSISTOR

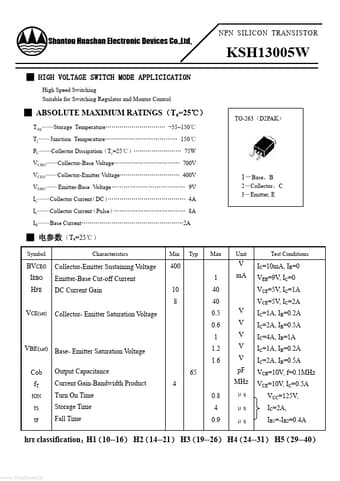

Shantou Huashan Electronic Devices Co.,Ltd. N P N S I L I C O N T RAN S I S T O R KSH13005W HIGH VOLTAGE SWITCH MODE APPLICICATION High Speed Switching Suitable for Switching Regulator and Montor Control ABSOLUTE MAXIMUM RATINGS（Ta=25℃） Tstg Storage Temperature………………………… -55~150℃ Tj Junction Temperature……………………………… 150℃ PC Collector Dissipation（Tc=25℃）…………………… 75W VCBO Collector-Base Voltage…………………………… 700V VCEO<.
