KSH13005AF, KSH13005A, NPN Silicon Power Transistor

KSX13005A Series KSB13005A/KSG13005A/KSU13005A KSD13005A/KSH13005A/KSH13005AF NPN Silicon Power Transistor, VCBO= 700V, VCEO= 400V, IC= 4A General D.
High voltage, high speed power switching. Suitable for switching regulator, inverters motor controls Features. VCBO = 700.

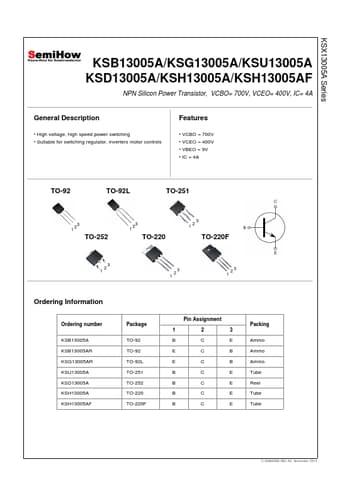

datasheet Preview Page 1 from Datasheet4u.com

KSH13005A-SemiHow.pdf

KSH13005AF Datasheet Preview — This datasheet PDF includes multiple part numbers: KSH13005AF, KSH13005A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KSH13005AF, KSH13005A

Manufacturer:

SemiHow

File Size:

252.06 KB

Description:

NPN Silicon Power Transistor

Note:

This datasheet PDF includes multiple part numbers: KSH13005AF, KSH13005A.
Please refer to the document for exact specifications by model.

Features

* VCBO = 700V
* VCEO = 400V
* VBEO = 9V
* IC = 4A TO-92 TO-92L TO-251 1 23 TO-252 1 23 TO-220 3 12 TO-220F 23 1 Ordering Information Ordering number KSB13005A KSB13005AR KSG13005AR KSU13005A KSD13005A KSH13005A KSH13005AF Package TO-92 TO-92 TO-92L TO-251 TO-
