Part number:
VSF45A2M
Manufacturer:
SHOULDER ELECTRONICS
File Size:
647.69 KB
Description:
Saw filter.
VSF45A2M-SHOULDERELECTRONICS.pdf
Datasheet Details
Part number:
VSF45A2M
Manufacturer:
SHOULDER ELECTRONICS
File Size:
647.69 KB
Description:
Saw filter.

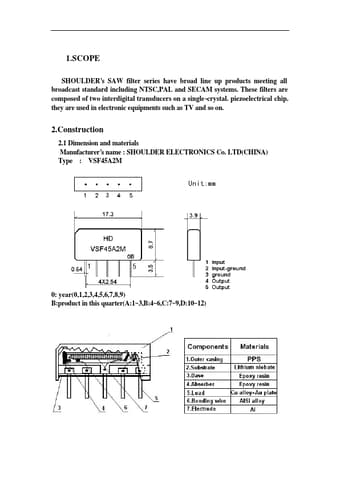

VSF45A2M, SAW filter
1.SCOPE SHOULDER’ s SAW filter series have broad line up products meeting all broadcast standard including NTSC,PAL and SECAM systems.
These filters are composed of two interdigital transducers on a single-crystal.
piezoelectrical chip.
they are used in electronic equipments such as TV and so on.
2.Construction 2.1 Dimension and materials Manufacturer’ s name : SHOULDER ELECTRONICS Co.
LTD(CHINA) Type : VSF45A2M 0: year(0,1,2,3,4,5,6,7,8,9) B:product in this quarter(A:1~3,B:4~6,C:7~9,D:10~12)
