VSF389A1M Datasheet (ETC)

VSF389A1M, SAW filter

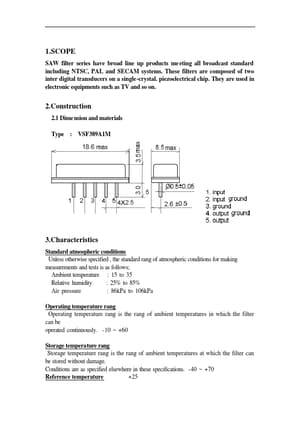

1.SCOPE SAW filter series have broad line up products me eting all broadcast standard including NTSC, PAL and SECAM systems.

These filters are composed of two inter digital transducers on a single-crystal.

piezoelectrical chip.

They are used in electronic equipments such as TV and so on.

2.Construction 2.1 Dime nsion and materials Type : VSF389A1M 3.Characteristics Standard atmospheric conditions Unless otherwise specified , the standard rang of atmospheric conditions for making measurements a
