VSF190N70HS2 N-Channel Advanced Power MOSFET

VSF190N70HS2 700V/20A N-Channel Advanced Power MOSFET .

VSF190N70HS2-VanguardSemiconductor.pdf

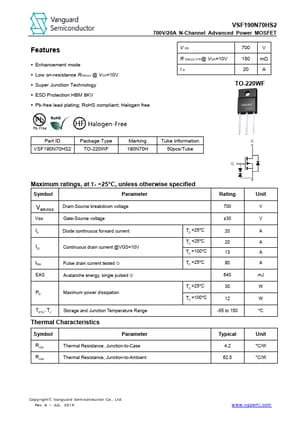

Preview of VSF190N70HS2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

VSF190N70HS2

Manufacturer:

Vanguard Semiconductor

File Size:

440.15 KB

Description:

N-Channel Advanced Power MOSFET

Features

* Enhancement mode
* Low on-resistance RDS(on) @ VGS=10V
* Super Junction Technology
* ESD Protection HBM 8KV
* Pb-free lead plating; RoHS compliant; Halogen free V DS R @ DS(on),TYP VGS=10V ID 700 V 150 mΩ 20 A TO-220WF Part ID VSF190N70HS2 Package Type TO-220WF Marking
