Datasheet Details

Part number:

VSF45A3M

Manufacturer:

ETC

File Size:

489.51 KB

Description:

Saw filter.

VSF45A3M, SAW filter

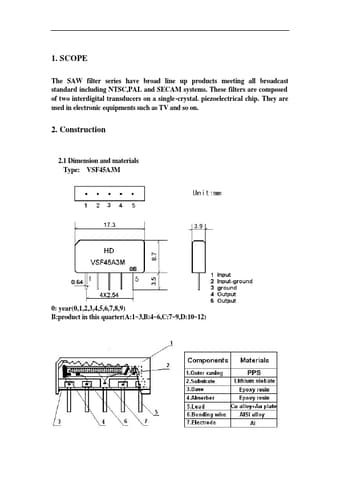

1.

SCOPE The SAW filter series have broad line up products meeting all broadcast standard including NTSC,PAL and SECAM systems.

These filters are composed of two interdigital transducers on a single-crystal.

piezoelectrical chip.

They are used in electronic equipments such as TV and so on.

2.

Construction 2.1 Dimension and materials Type: VSF45A3M 0: year(0,1,2,3,4,5,6,7,8,9) B:product in this quarter(A:1~3,B:4~6,C:7~9,D:10~12) 3.

Characteristics Standard atmospheric conditions Unless other
