VSF389A2M Datasheet (ETC)

VSF389A2M, SAW filter

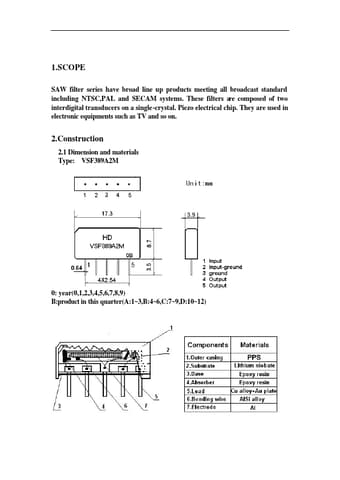

1.SCOPE SAW filter series have broad line up products meeting all broadcast standard including NTSC,PAL and SECAM systems.

These filters are composed of two interdigital transducers on a single-crystal.

Piezo electrical chip.

They are used in electronic equipments such as TV and so on.

2.Construction 2.1 Dimension and materials Type: VSF389A2M 0: year(0,1,2,3,4,5,6,7,8,9) B:product in this quarter(A:1~3,B:4~6,C:7~9,D:10~12) 2.2.

Circuit construction, measurement circuit 3.Characteristics Sta
