VSF450N70HS2 Datasheet - Vanguard Semiconductor

VSF450N70HS2, N-Channel Advanced Power MOSFET

VSF450N70HS2 700V/11A N-Channel Advanced Power MOSFET .

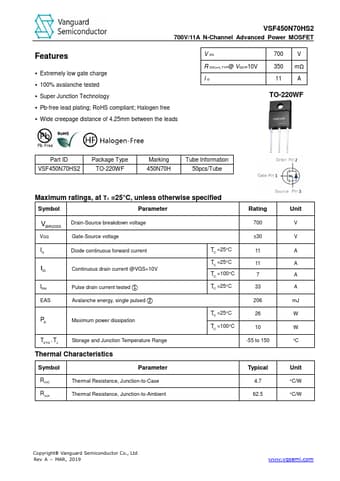

datasheet Preview Page 1 from Datasheet4u.com

VSF450N70HS2-VanguardSemiconductor.pdf

Preview of VSF450N70HS2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

VSF450N70HS2

Manufacturer:

Vanguard Semiconductor

File Size:

656.79 KB

Description:

N-Channel Advanced Power MOSFET

Features

* Extremely low gate charge
* 100% avalanche tested
* Super Junction Technology
* Pb-free lead plating; RoHS compliant; Halogen free
* Wide creepage distance of 4.25mm between the leads V DS R @ DS(on),TYP VGS=10V ID 700 V 350 mΩ 11 A TO-220WF Part ID VSF450N70HS2 Package
