SUR1560 Soft Recovery Behaviour Ultra Fast Recovery Epitaxial Diodes

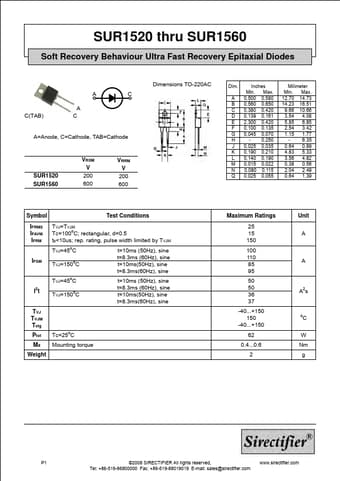

SUR1520 thru SUR1560 Soft Recovery Behaviour Ultra Fast Recovery Epitaxial Diodes A C A C(TAB) C A=Anode, C=Cathode, TAB=Cathode SUR1520 SUR1560 VRSM V 200 600 VRRM V 200 600 Dimensions TO-220AC Dim. A B C D E F G H J K L M N Q Inches Min. Max. 0.500 0.580 0.560 0.650 0.380 0.420 0.139 0.161 2.300 0.420 0.100 0.135 0.045 0.070 - 0.250 0.025 0.035 0.190 0.210 0.140 0.190 0.015 0.022 0.080 0.115 0.025 0.055 Milimeter Min. Max. 12.70 14.73 14.23 16.51 9.66 10.66 3.54 4.08 5.85 6.85 2.5.

SUR1560 Features

* International standard package JEDEC TO-220AC

* Glass passivatd chips

* Very short recovery time

* Extremely low switching losses

* Low IRM-values

* Soft recovery behaviour

* RoHS compliant APPLICATIONS

* Antiparallel diode for high frequency switching devices
