SUR490J - Epitaxial Planar type NPN Silicon Transistor

SUR490J Description

Semiconductor SUR490J Epitaxial Planar type NPN Silicon Transistor .
Digital transistor Features. Two SRC1202 chips in SOT-363 package. With built-in bias resistors Ordering Information Ty.

SUR490J Features

* Two SRC1202 chips in SOT-363 package
* With built-in bias resistors Ordering Information Type NO. SUR490J Marking OO Package Code SOT-363 Outline Dimensions unit : mm 2.1 BSC 1.25 BSC 3 R1 2 R2 1 1 2 0.15~0.30 6 1.30 BSC 2.0 BSC Tr2 R2 R1 Tr1 5 4 4 5 6 3 R1 Tr1 Tr2

📥 Download Datasheet

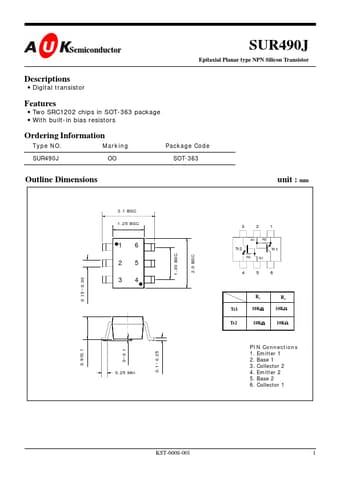

Preview of SUR490J PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SUR490J
Manufacturer
AUK
File Size
51.51 KB
Datasheet
SUR490J_AUK.pdf
Description
Epitaxial Planar type NPN Silicon Transistor
