SUR491J - NPN/PNP Epitaxial Planar Silicon Transistor

SUR491J Description

Semiconductor SUR491J NPN/PNP Epitaxial Planar Silicon Transistor .
Digital transistor Features. Both SRC1202 chip and SRA2202 chip in SOT-363 package. With built-in bias resistors Orderin.

SUR491J Features

* Both SRC1202 chip and SRA2202 chip in SOT-363 package
* With built-in bias resistors Ordering Information Type NO. SUR491J Marking BX Package Code SOT-363 Outline Dimensions unit : mm 2.1 BSC 1.25 BSC 3 R1 2 R2 1 1 2 0.15~0.30 6 1.30 BSC 2.0 BSC Tr2 R2 R1 Tr1 5 4 4 5

📥 Download Datasheet

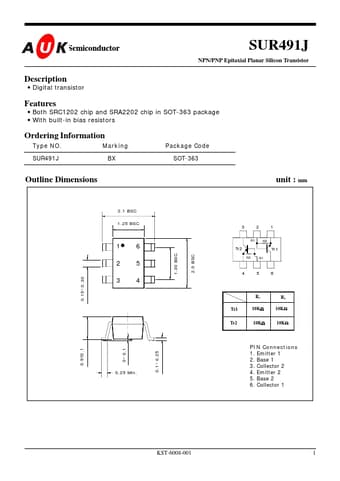

Preview of SUR491J PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SUR491J
Manufacturer
AUK
File Size
74.62 KB
Datasheet
SUR491J_AUK.pdf
Description
NPN/PNP Epitaxial Planar Silicon Transistor
