SUR496H - NPN/PNP Epitaxial Planar Silicon Transistor

Datasheet Details

Part number	SUR496H
Manufacturer	AUK
File Size	229.22 KB
Description	NPN/PNP Epitaxial Planar Silicon Transistor
Datasheet	SUR496H_AUK.pdf

General Purpose Transistor

Both SRC1204 chip and SRA2207 chip in SOT-353 package.

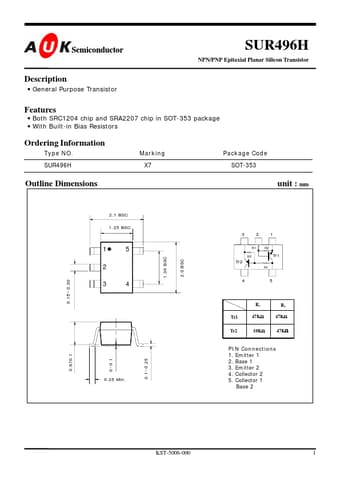

With Built-in Bias Resistors Ordering Information Type NO. SUR496H Marking X7 Package Code SOT-353 Outline Dimensions unit : mm 2.1 BSC 1.25 BSC 3 2 R1 R2 1 1 2 0.15~0.30 5 1.30 BSC R2 Tr1 R1 2.0 BSC Tr2 3 4 4 5 R1 Tr1 Tr2 47KΩ 10KΩ R2 47KΩ 47KΩ 0.25 Min. PIN Connections 1. Emitter 1 2. Base 1 3. Emitter 2 4. Collector 2 5. Collector 1 Base 2 0.9±0.1 0.1~0.25 0~0.1 KST-5006-000 1 SUR496H Absolute ma.
