SUR499H - Epitaxial Planar PNP Transistor

SUR499H Description

Semiconductor SUR499H Epitaxial Planar PNP Transistor .
General purpose application. Two SRA2205 chips in SOT-353 package Features. With built-in bias resistors. Sim.

SUR499H Features

* With built-in bias resistors
* Simplify circuit design
* Reduce a quantity of parts and manufacturing process Ordering Information Type NO. SUR499H Marking Y1 Package Code SOT-353 Outline Dimensions 2.1 BSC 1.25 BSC 3 2 1 unit : mm 1 2 0.15~0.30 5 1.30 BSC 2.0 BSC 4

📥 Download Datasheet

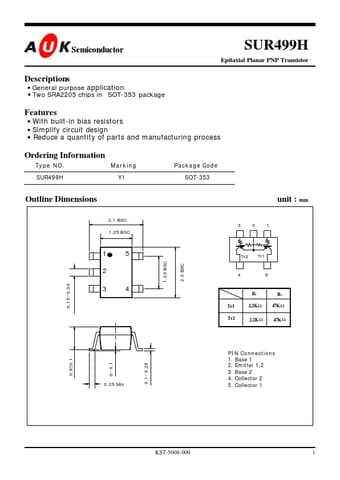

Preview of SUR499H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SUR499H
Manufacturer
AUK
File Size
46.94 KB
Datasheet
SUR499H_AUK.pdf
Description
Epitaxial Planar PNP Transistor
