DB101 - SINGLE PHASE 1.0AMP GLASS PASSIVATED BRIDGERECTIFIER

DB101 Description

DB101 THRU DB107 Technical Data Data Sheet N1778, Rev.A DB101 THRU DB107 SINGLE PHASE 1.0AMP GLASS PASSIVATED BRIDGE RECTIFIER DB-M .

DB101 Features

* Glass passivated die construction
* Low forward voltage drop
* High current capability
* High surge current capability
* Plastic material-UL flammability 94V-0
* This is a Pb
* Free Device
* “-HF” suffix is for Halogen Free Device
* All SMC parts are traceab

DB101 Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted

📥 Download Datasheet

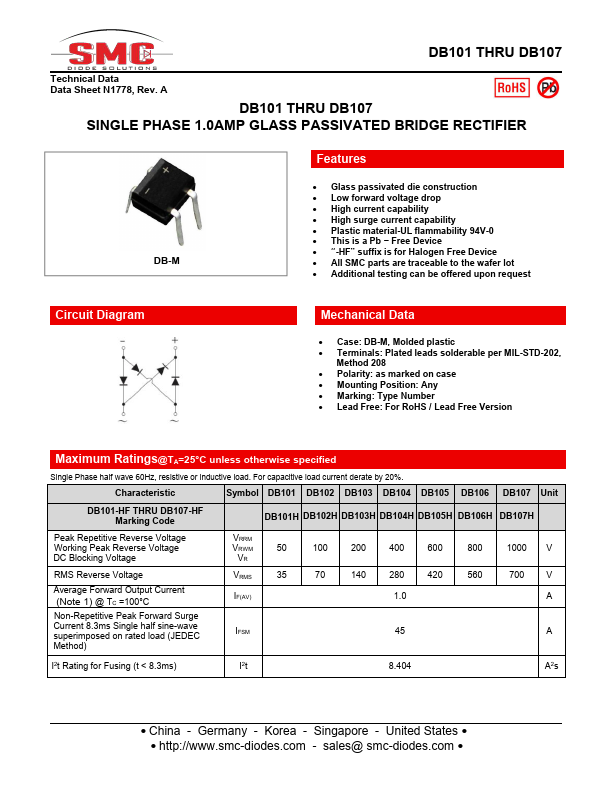

Preview of DB101 PDF

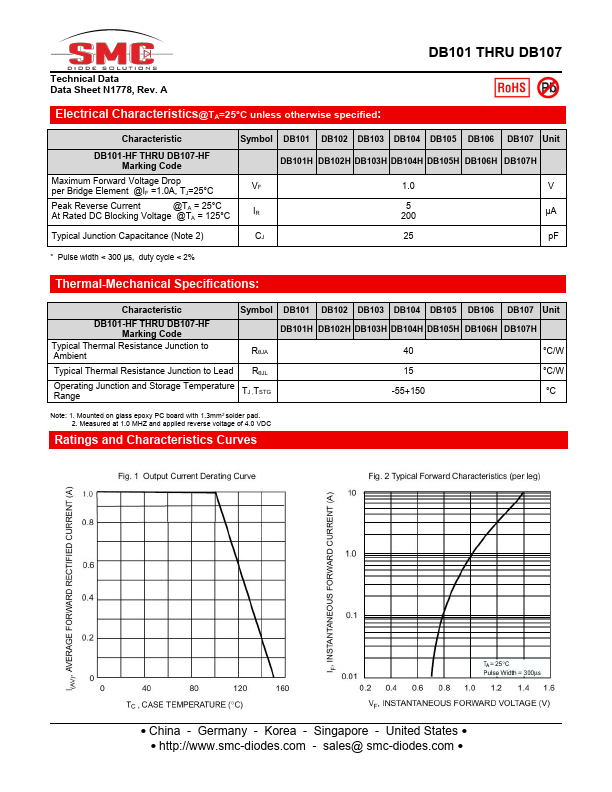

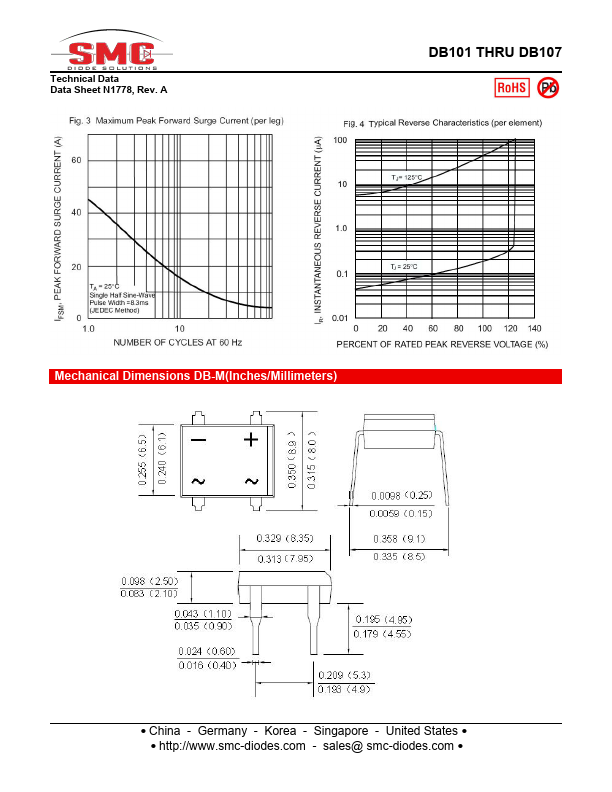

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DB101
Manufacturer
SMC Diode
File Size
368.19 KB
Datasheet
DB101-SMCDiode.pdf
Description
SINGLE PHASE 1.0AMP GLASS PASSIVATED BRIDGERECTIFIER
