DB106S, DB101S GLASS PASSIVATED SILICON BRIDGE RECTIFIERS

SMC Diode

Description

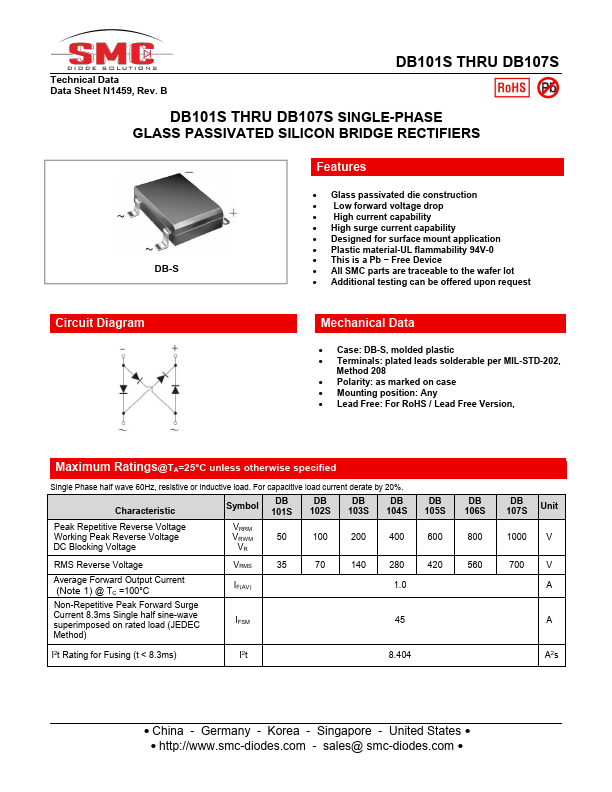

Technical Data Data Sheet N1459, Rev.B DB101S THRU DB107S DB101S THRU DB107S SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIERS DB-S .

📥 Download Datasheet

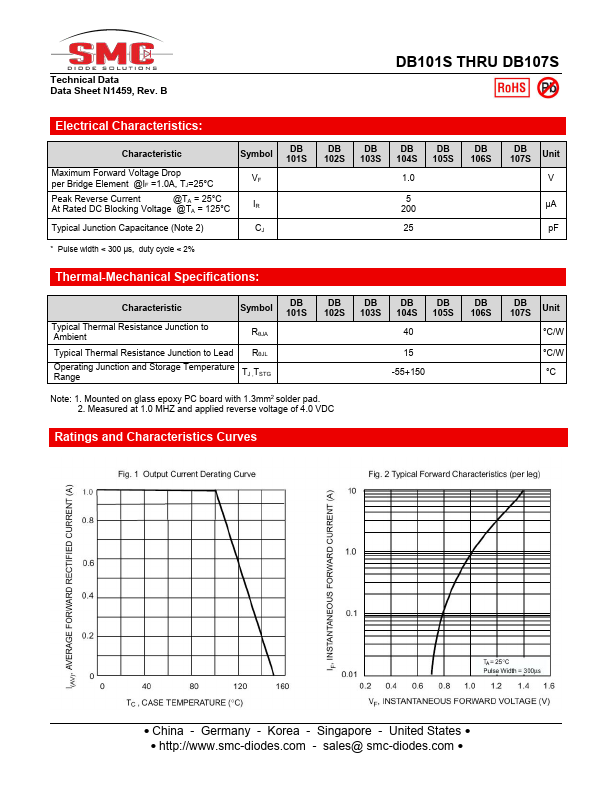

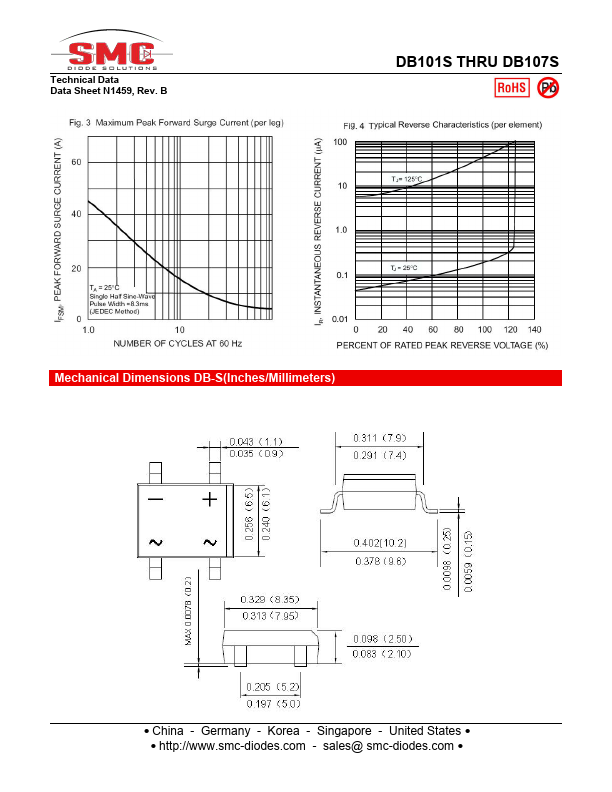

DB106S Datasheet Preview — This datasheet PDF includes multiple part numbers: DB106S, DB101S. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DB106S, DB101S
Manufacturer: SMC Diode
File Size: 370.56 KB
Datasheet: DB101S-SMCDiode.pdf
Description: GLASS PASSIVATED SILICON BRIDGE RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: DB106S, DB101S.
Please refer to the document for exact specifications by model.

Features

* Glass passivated die construction
* Low forward voltage drop
* High current capability
* High surge current capability

Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value
