S3D16065D - 650V SIC POWER SCHOTTKY RECTIFIER

S3D16065D Description

S3D16065D Technical Data Data Sheet N2460, REV.- S3D16065D 650V SIC POWER SCHOTTKY RECTIFIER TO-247AD(TO-247-3) .
S3D16065D is a SiC Schottky rectifier packaged in TO247AD(TO-247-3) case.

S3D16065D Features

* 175°C TJ operation
* Ultra-low switching loss
* Switching speeds independent of operating temperature
* Low total conduction losses
* High forward surge current capability
* High package isolation voltage
* Terminals finish: 100% Pure Tin
* “-A” is an AEC-Q101 quali

S3D16065D Applications

* in challenging environments. Circuit Diagram Applications
* Alternative energy inverters
* Power Factor Correction (PFC)
* Free-Wheeling diodes
* Switching supply output rectification

📥 Download Datasheet

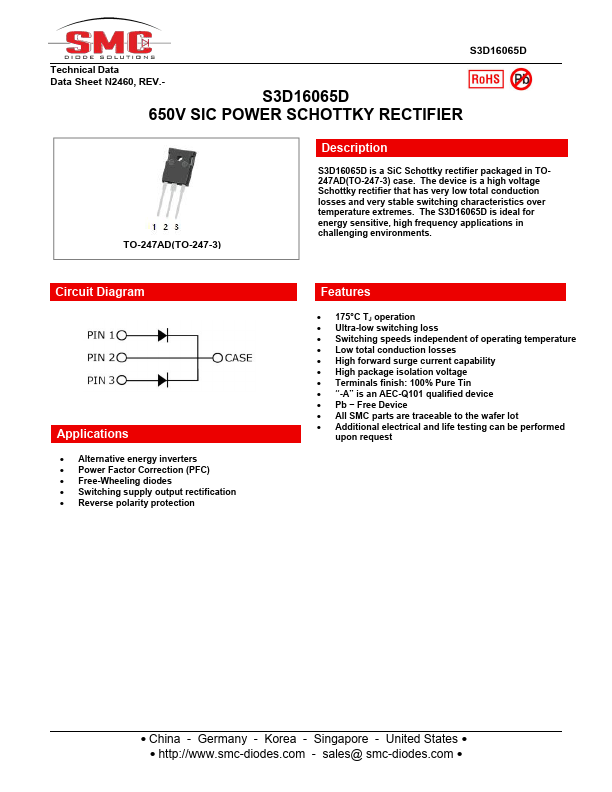

Preview of S3D16065D PDF

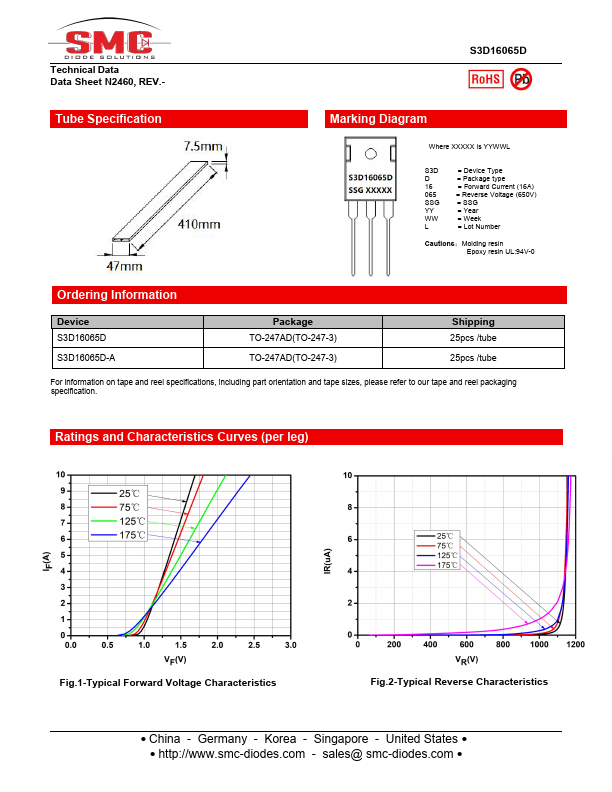

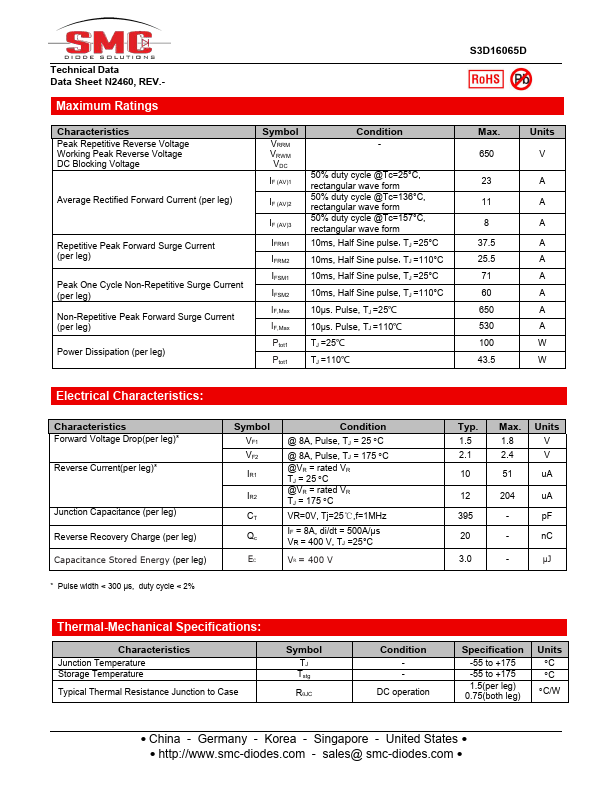

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S3D16065D
Manufacturer
SMC Diode
File Size
1.02 MB
Datasheet
S3D16065D-SMCDiode.pdf
Description
650V SIC POWER SCHOTTKY RECTIFIER
