SB5200 - SCHOTTKY RECTIFIER

SB5200 Description

SB5200 Technical Data Data Sheet N0094, Rev.A SB5200 SCHOTTKY RECTIFIER DO-201AD .

SB5200 Features

* Schottky Barrier Chip
* Guard Ring Die Construction for Transient Protection
* High Current Capability
* Low Power Loss, High Efficiency
* High Surge Current Capability

SB5200 Applications

* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer lot
* Additional testing can be offered upon request Circuit Diagram Applications
* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Disk drives

📥 Download Datasheet

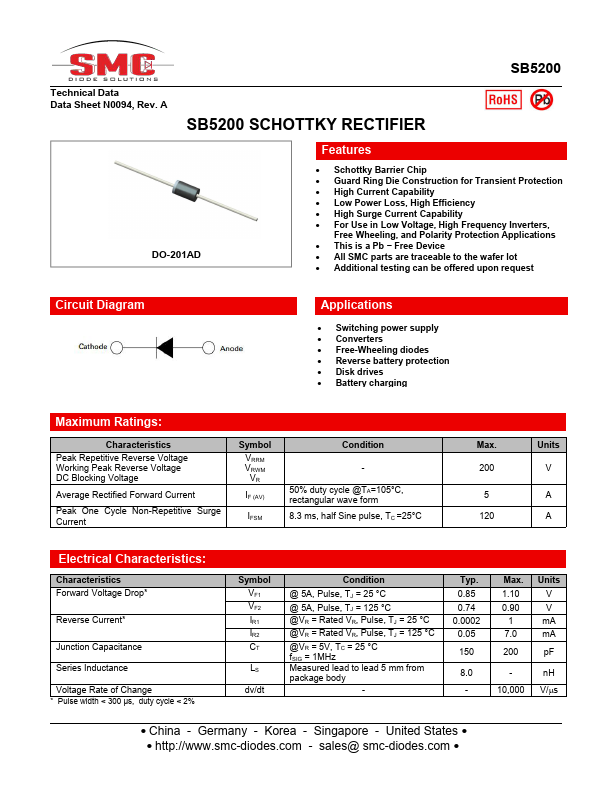

Preview of SB5200 PDF

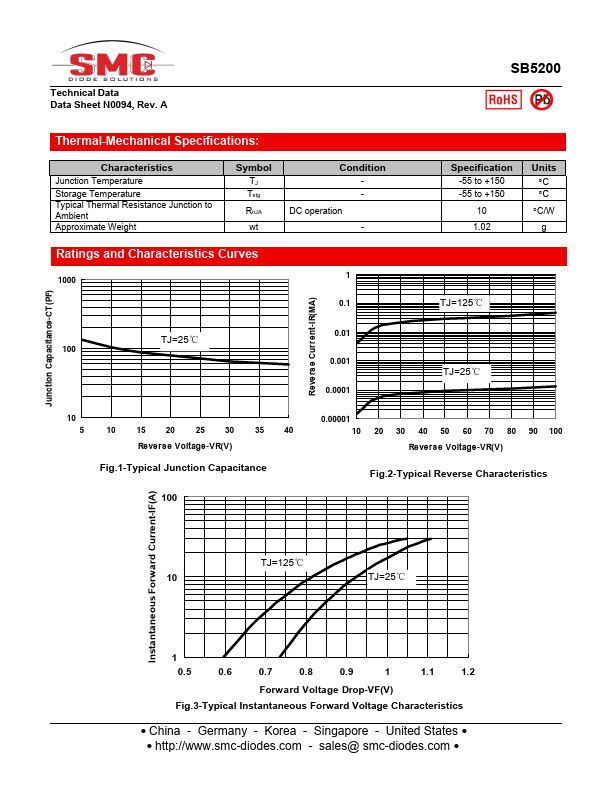

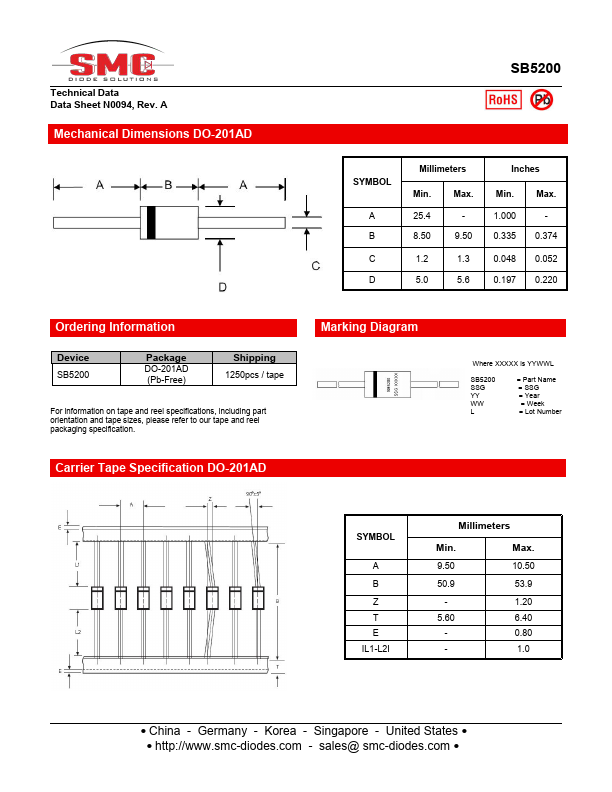

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB5200
Manufacturer
SMC Diode
File Size
188.40 KB
Datasheet
SB5200-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
